Plot / Row Motion 电动条播机

采用电动播种机传动装置,灵活性和准确度极高。

Plot / Row Motion 电动条播机

采用电动播种机传动装置,灵活性和准确度极高。

这台利用电动播种驱动装置实现小块耕地播种和/或单行播种的拖拉机牵引式或(三点)悬挂式机器是为了实现最高程度的准确度和重复精度而研发的。这两个播种机类型均有轻型直至重型可以配置,并且可在一台机器上组合两种播种系统。

使用播种软件 Easy Plant 可将播种和收获数据关联起来。



可通过变化多端的模块系统组装机器,使其适应于所有应用。





Your benefits summed up:

  • Plot and/or single row planting: Combination of both sowing systems on one machine
  • High level of flexibility in plot layout
  • Maximum precision due to electric sowing drive
  • Easy modifications and upgrades due to flexible frame and control concept
  • Easy Plant planting software for optimum interlinking of planting and harvesting data

High degree of flexibility in field layout.

  • Plot lengths from 1 to 60 m with Plot Motion
  • Plot lengths from 0.5 to 25 m with Row Motion
  • Narrow alleys from 0 m

Flexible frame concept.

Flexibles Rahmenkonzept
  • Flexible frame and control concept makes conversions and upgrades extremely easy.
  • Same frame module and control module on all seeders from the latest family.
  • CE-certified design ensures excellent visibility and a high degree of safety. Each machine is equipped with steps, a platform, and rails.
  • High degree of modularity in equipment options
  • Double and triple plot seeders can be configured via the modules as standard
  • Tractor mounted with three-point or pull-type seeder, planting on beds optional

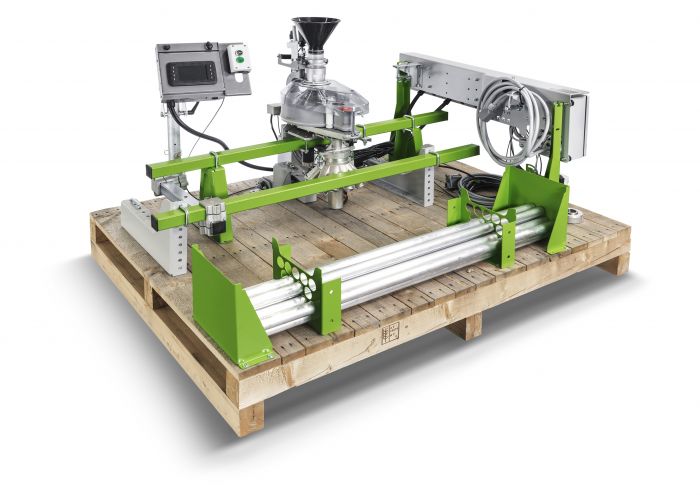

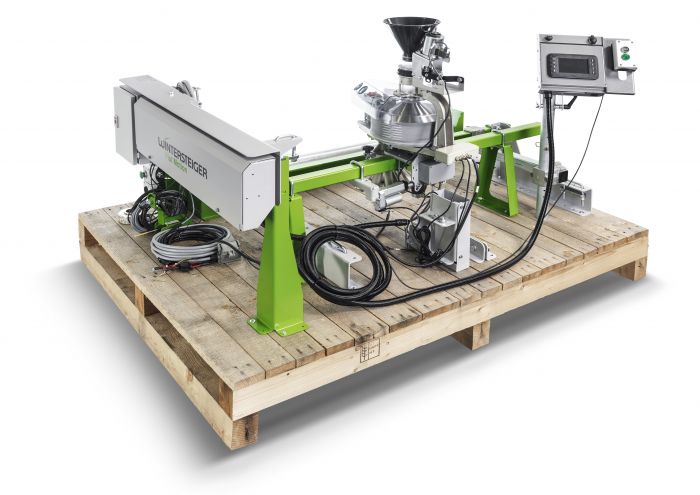

  • Both the single row seeder and plot seeder are available as a kit for mounting on a local frame
  • Can be attached to the WINTERSTEIGER Tool Carrier
  • Each machine and each kit is subject to rigorous quality control

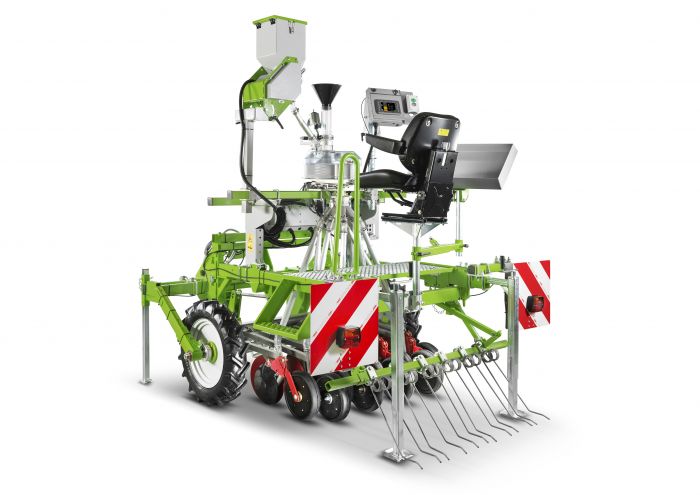

Row Motion

Row Motion

Plot / Row Motion

Plot / Row Motion

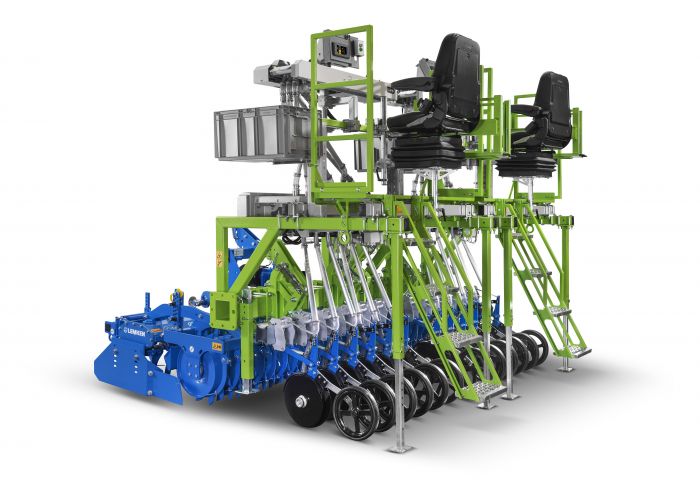

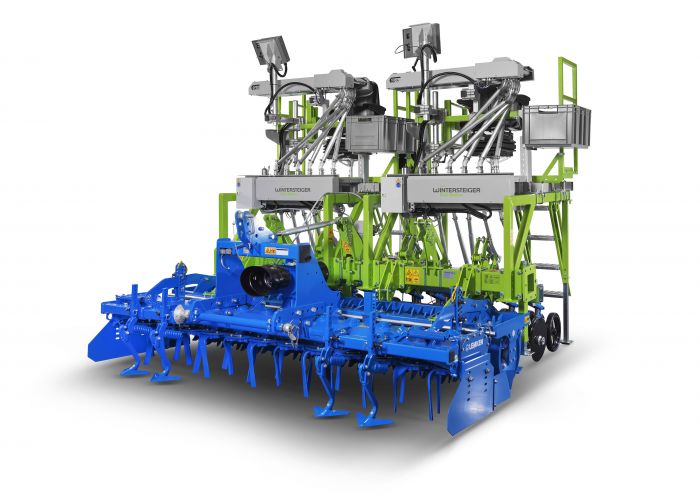

旋转耙上的双重 Row Motion

旋转耙上的双重 Row Motion

旋转耙上的双重 Row Motion

旋转耙上的双重 Row Motion

Triple Row Motion

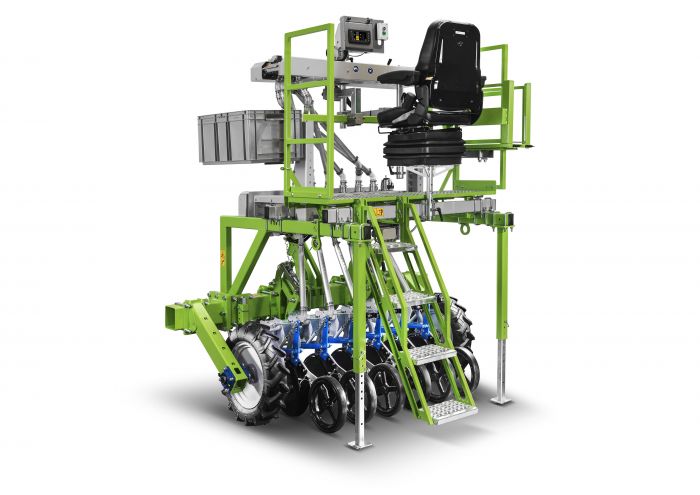

Row Motion 操作台

Row Motion 操作台

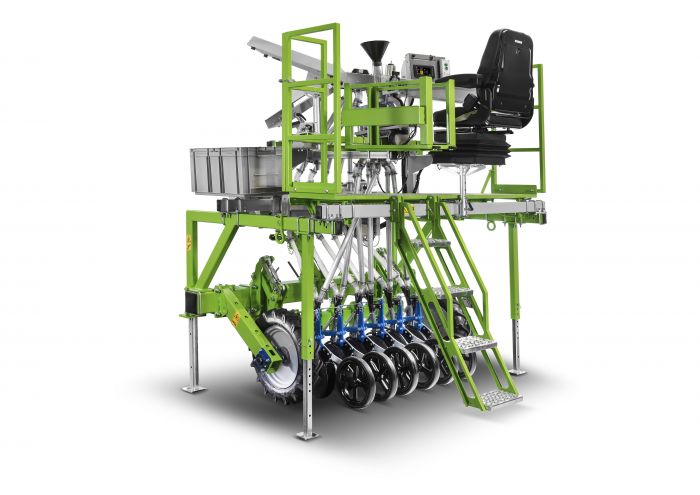

Plot / Row Motion 操作台

Plot / Row Motion 操作台

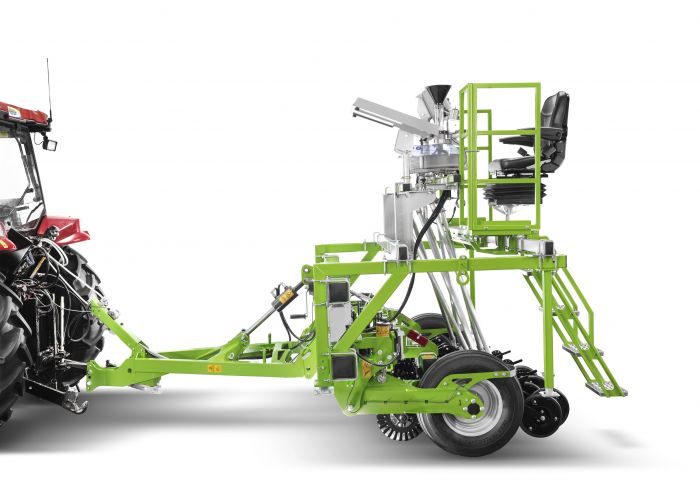

Plot Motion Pulltype

Plor Motion Pulltype

Plot Motion Pulltype

Plot Motion Pulltype

Plot Motion S

Plot Motion 配有两个蜂窝轮

Modern, user-friendly control system.

Modern, user-friendly control system.

  • Modern and intuitive user interface with color display even with the entry-level control unit. The control system can be operated using buttons or the touch screen.
  • Optimum interlinking of planting and harvesting data, as the Easy Plant planting software is now also available for plot drills.
  • Variable sowing density as well as fertilizer and microgranulate quantities are possible via field plan import with Easy Plant.
  • Spraying alleys, gaps, as well as different plot and alley lengths can be implemented even in the basic version.
  • Easy update function via USB port.



eMotion

Easy Plant

Display size

5”

10.1”

Operation

Touch screen and buttons

Touch screen

Software can be installed on customer PC

  •

Planting functions



Quickset for entering field plans

  •
  •

Creation of simple field plans (separation of plot blocks)

  •
  •

Diagnostic function

  •
  •

Simple update function via terminal

  •
  •

Wizard for calibration processes

  •
  •

Variable application rate for multi-purpose spreader (fertilizer, micro granulate, seeds)

Import of CSV or Excel field plans for complex trials

  •

Bulk seeding

 +

 +

GPS connectivity options



External actuation via GIS field plan

  •
  •

Distance-based pulse

 +

 +

Area-based pulse (when using GIS field plans). With the area-based pulse, the telemetricsensor is also constantly recalibrated; this is not the case with external actuation.

 +

 +

  • Standardequipment, + optionalequipment, – notavailable

Tried-and-tested seed feeding system with optimized details.

Tried-and-tested distributing systems such as a belted cone, cell wheel, magazine unit, predistributor, and single funnel have been improved down to the last detail and therefore ensure greater distribution accuracy and wear resistance. This results in better repeatability and higher operational reliability. Each component has its own drive unit and can be positioned independently.

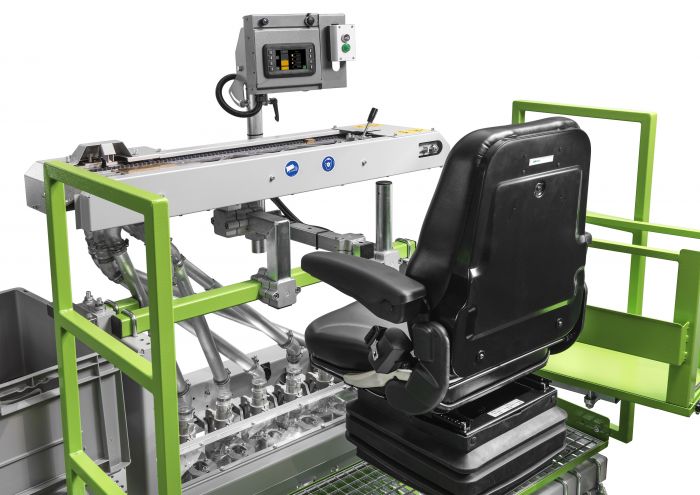

Row Motion operator platform

Plot/Row Motion operator platform

Belted cone with improved longitudinal distribution and wear resistance

Wide range of openers.

From lightweight shoe openers to heavy double disk openers, we offer a wide range of openers for every soil type. Customer-specific solutions can also be implemented.

Openers.

1

PÖTTINGER shoe opener

The PÖTTINGER shoe opener has the same opener pressure – of up to 25 kg – at the front and rear. The opener features precise depth control for a perfect seed furrow, unobstructed sowing thanks to the 30-cm opener increment, and a wear resistant cast point. Optional pressure rollers for depth guidance and reconsolidation are available. The depth can be adjusted easily using lock pins.

2

PÖTTINGER single disk opener

The PÖTTINGER single disk opener is suitable for light soils with little organic matter. A spring-loaded protective flap automatically closes the opener when moving backwards and provides reliable protection. The cast opener points are wear resistant.

3

LEMKEN double disk opener

The LEMKEN double disk opener with rubber-tired depth control roller and parallelogram suspension places the seed accurately at a uniform depth even in variable soils.

4

GREAT PLAINS (00 series) double disk opener

The GREAT PLAINS double disk opener with centrally adjustable opener pressure from 40 to 100 kg per opener is suitable for conventional and minimum till.

5

ACRA PLANT 双圆盘开沟器

ACRA PLANT 双圆盘开沟器带有 380 mm 的锯齿状圆盘,适用于有机残留物较多的重质土壤条件,适合少耕或不耕。开沟器可选配 100 mm 宽的深度控制轮(标准版为 50 mm)和第二个犁头压力弹簧,由此可以产生高达 190 kg 的犁头压力。

6

靴式施肥开沟器

结构简单的靴式施肥开沟器适用于有机质含量低的且准备充分的土壤。

7

MONOSEM 双圆盘施肥开沟器

多功能双圆盘施肥开沟器非常适合于最小化耕作和处理植物表层残留物。插入元件具有带弹簧复位功能的防石子保护装置,并可调节工作深度

8

YETTER 2999 预切圆盘

弹簧加载式 YETTER 2999 预切圆盘的圆盘具有 25 道波纹,直径为 370 mm,适用于非常坚硬和干燥的土壤条件。弹簧预紧力使预切机能够回避石子等异物,从而避免对框架造成损坏。

Openers/fertilizer openers/pre-cutting disks

1

2

3

4

5

6

7

8

Application areas

Prepared, light soils

  •
  •
  •
  •

  •
  •

Medium-heavy soils, minimum tillage, mulch seeding

  •
  •
  •
  •

  •
  •

Direct seeding, no tillage



  •

Min. row spacing in cm (in)

9.5 (3.74)

9.5 (3.74)

12.5 (4.92)

15 (5.91)

18 (7.09)



Max. opener pressure in kg

25

25

45

100

190

  • suitable,  suitable to a limited extent, –  not suitable
Plot Row Motion

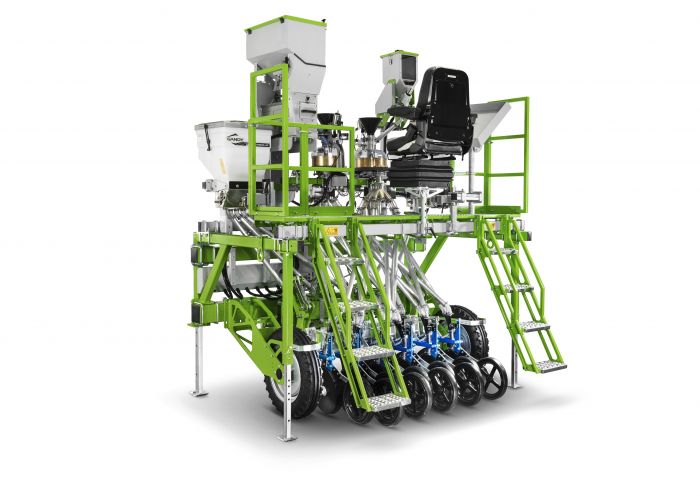

Fertilizer/micro-granulate distribution and bulk seed sowing
(option).

In addition to normal plot planting, a variety of options are offered for fertilizer or micro-granulate distribution as well as bulk seeding. Distribution can take place either in portions via a belted cone or a cell wheel, or continuously. Filling takes place in each case via a CE-compliant platform with suitable steps and rails.



We offer the following options for continuous distribution:

Container for continuous distribution.



Metal container with view window that can be easily lowered for transport. The drive is provided by a brushless 12 V DC motor, which is controlled from the seeder control unit depending on the driving speed. The metering element conveys the feeding material into the belted cone, from which it is conveyed into the rotary distributor and distributed to the sowing rows.



Technical data

Fill amount

13 l (2.95 gal)

Suitable for

Seeds,fertilizer,microgranulate



Distribution system

Fertilizer opener, with seeds in furrow, de- flectorfordistributionontopsoil,border row planting

Design

Normal or for fine seeds

Metering system

Central MINIMAX metering unit from GASPARDO via belted cone/cell wheel

Number of rows

2 to 16

Multi-purpose spreader.



Plastic box, available in two different sizes. The drive is provided by a brushless 12 V DC motor, which is controlled from the seeder control unit depending on the driving speed. If desired, it is possible to vary the application rate from plot to plot via the field plan in Easy Plant.





 Technical data

Fill amount

22 l (20 kg) or 47 l (45 kg)

Suitable for

Seeds,fertilizer,microgranulate



Distribution system

Fertilizer opener, with seeds in furrow, de- flectorfordistributionontopsoil,border row planting

Metering system

Meteringwheelsindifferentsizes



Number of rows



1 to 4 rows can be fed per box, up to 4 boxes per group

Ausbringeinheit

Continuous spreading unit with feeding of the openers via rotary distributor

Mehrzweckstreuer
  • Multi-purpose spreader 47 l (45 kg) or 22 l (20 kg)
  • Metering wheels in different sizes
