DSG Notum
Thin-cutting frame saw

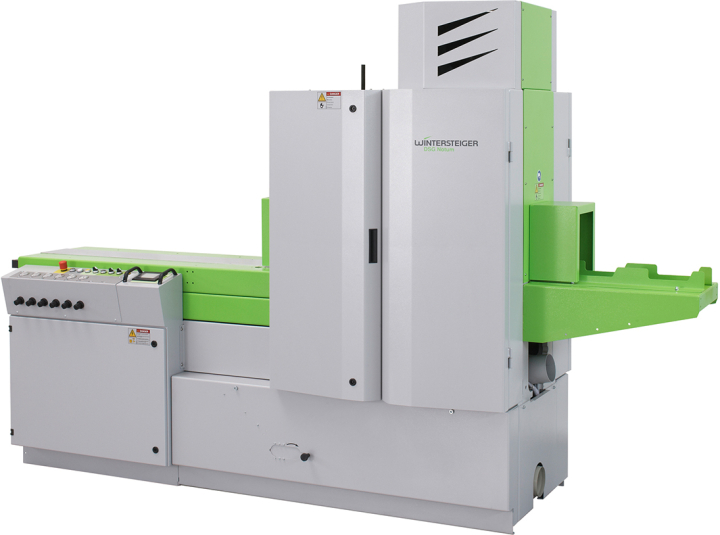

DSG Notum Thin-cutting frame saw
薄木框锯机。
DSG Notum Thin-cutting frame saw
薄木框锯机。
WINTERSTEIGER 完美的将几十年的经验与最先进的技术融合在一起，设计出了DSG Notum。 设计时的要求为：用最好的技术、最优的价格，来达到以最经济的方式实现顶级的品质！
DSG Notum的强大实力，都能在日常加工过程中体现出来。它可以加工下列高品质的薄木板产品就是很好的例子:
- 拼花地板
- 多层板
- 门
- 窗
- 家具
- 铅笔木
- 乐器
- 等等
优点概括如下:
Notum – 经验
- 薄木框锯机发明者的经验之作
- 精准度与性能可以满足任何要求
- 40年的知识与能力积累，应用于全球范围
经受了长久的考验，并不断创新
- 电子控制的精确送料系统
- 中心分布的锯框应力
- 切割高度 266 mm
- 完美的锯框系统
- 经过优化的吹风系统
简便的操作
- 机器结构按人体工学设计，确保每个部件都能轻易的被接触到
- 电动压轮升降系统
- 触摸屏操作起来十分简便
- 中央控制台
Notum – the experience
From the inventor of the thin-cutting frame saw
The DSG Notum Pro continues WINTERSTEIGER’s tradition of combining the highest quality with resource-saving processing. It is a tradition that began with the predecessor model DSG 150 in 1970 and has since established itself worldwide. In the DSG Notum Pro, WINTERSTEIGER has now introduced the next family of frame saws, and the global technology leader has poured all of its experience into developing this new product. With high precision, minimal kerf, and ready-to-glue surface quality, WINTERSTEIGER has long been a leader in thin-cutting frame saws. The comprehensive portfolio of machinery and tools developed and produced by WINTERSTEIGER plus service guarantees the long-term performance of every single machine.
The best technology at the best price for cost-effective access to the premium segment.
Expertise and know-how in use all around the world
Expertise and know-how in use all around the world
There are currently more than 2,000 WINTERSTEIGER thin-cutting frame saws in use all over the world. Every single one of these machines is testament to WINTERSTEIGER’s expertise and know-how. The DSG Notum Pro is proving to be the latest chapter in the success story that WINTERSTEIGER and its customers continue to write together.
How do you exceed high expectations?
By offering benefits as standard
Every investment requires careful consideration, and economic criteria are the deciding factor. Even the basic version of the DSG Notum comes with an impressive variety of standard product features, guaranteeing a high level of satisfaction and consistent performance.
Electronically controlled precision feed.
An electronically controlled precision feed at the charging and discharging unit of the machine drives the transport rollers. This ensures each saw tooth removes material with precision – at every stage of the saw frame movement. The result is a long saw blade service life and smooth surfaces with extremely high accuracy.
Product features at a glance

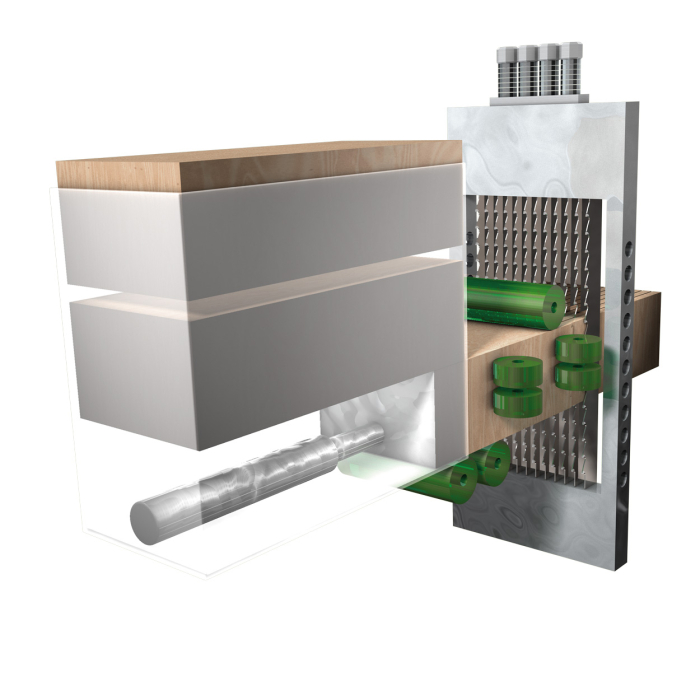

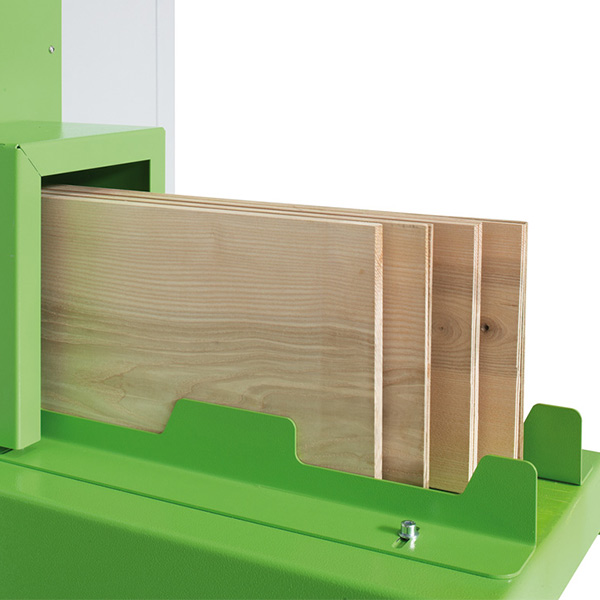

Magazine
The magazine ensures continuous feeding of the wooden blocks. Multiple machines can be operated by just one person.
Electronically controlled precision feed

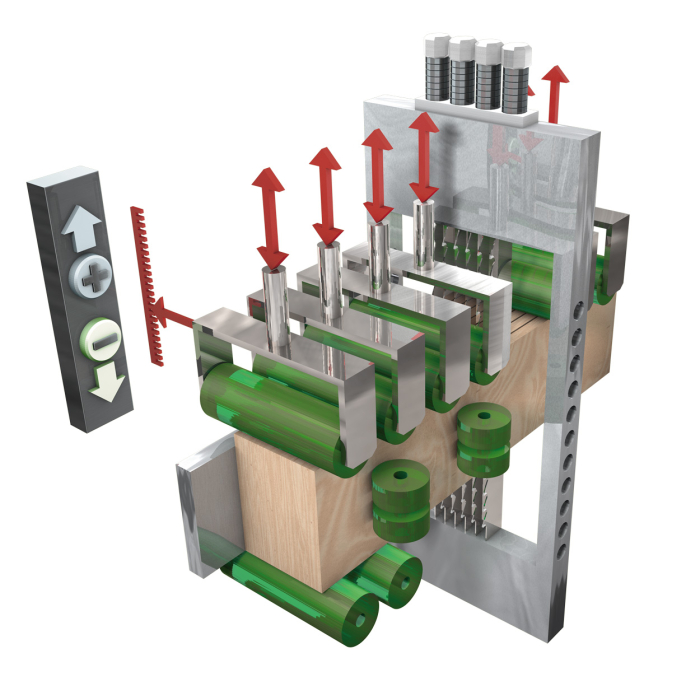

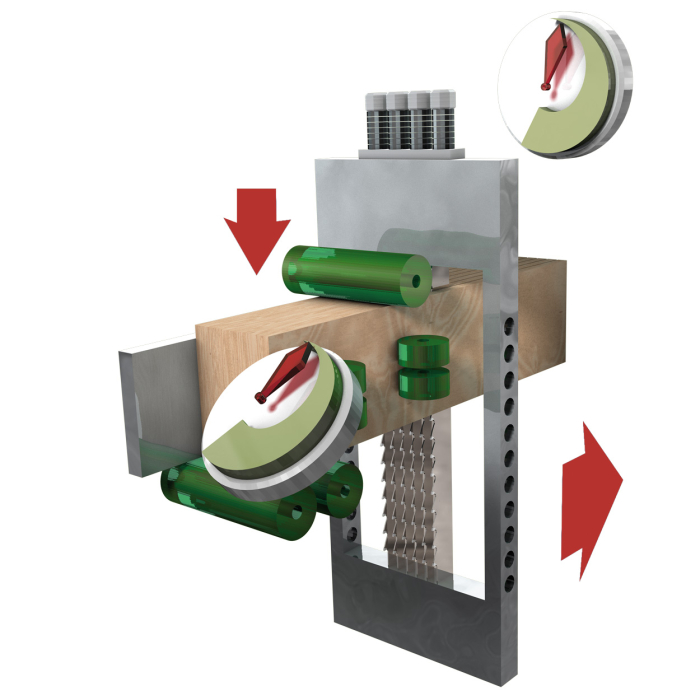

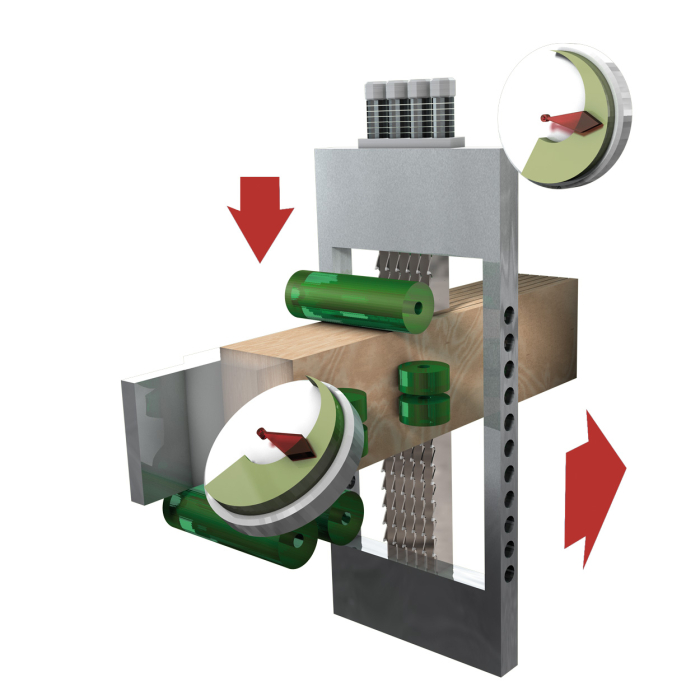

Down pressure system
The electrically adjustable down pressure system can adjust the block height automatically and minimizes adjustment times.
Center guide
Side guide
Channel system

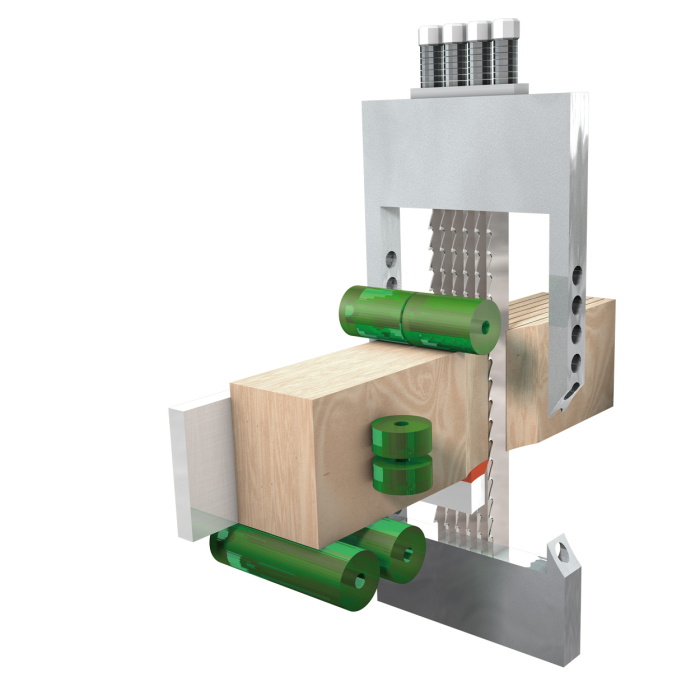

Splinter guard
The built-in splinter guard guarantees optimum stabilization of the underside of the block when the saws emerge.

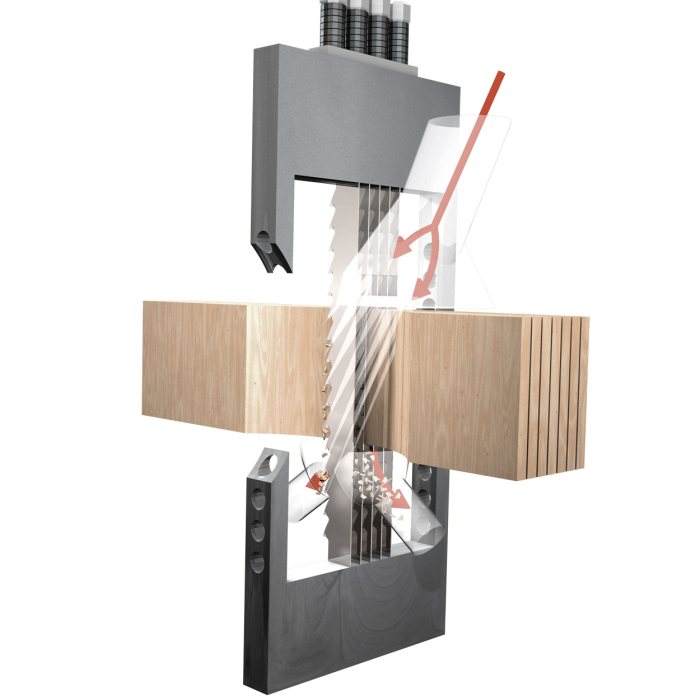

Air jet
The air jet supplies a continuous flow of air directly into the cutting area of the saw tooth, clearing the cutting area of sawdust during the cutting process. This keeps friction to a minimum and protects the saw teeth against blunting, thereby ensuring that the saws do not heat up. User benefits: The saw boasts a longer service life, produces a largely dust-free lamella, and can be used for cutting difficult-to-machine wood types.

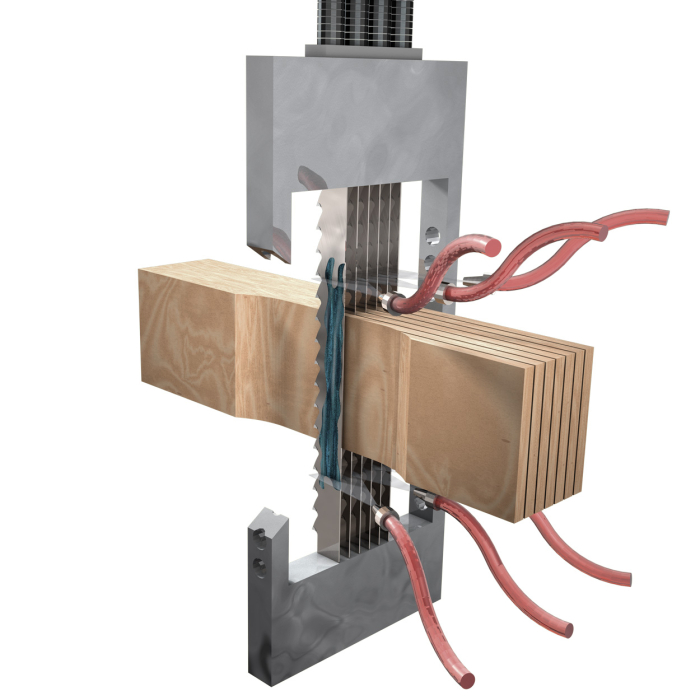

Spraying system
Spraying a biological anti-stick agent onto the saw blade prevents resinous sawdust from sticking to the saw blade. The spraying intervals can be set individually according to the wood type and customer requirements.

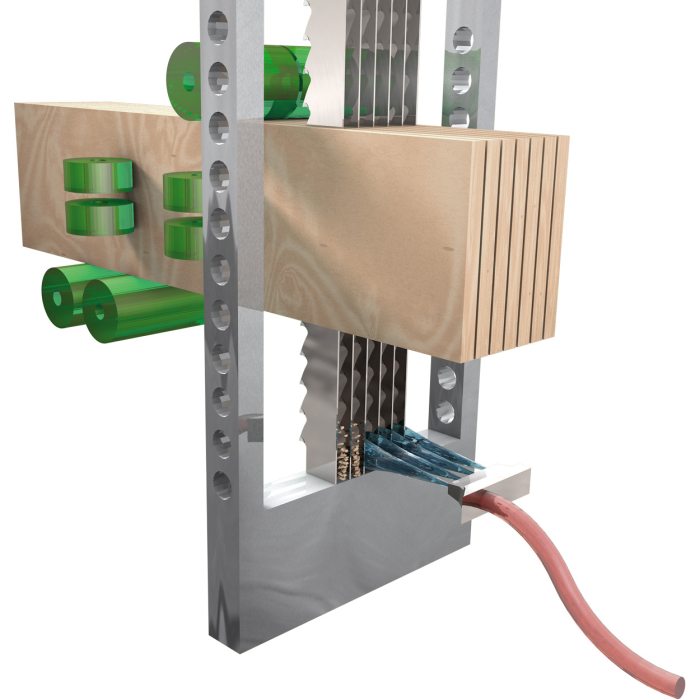

Wet cutting system
In addition to the air jet and spraying system, compressed air can also be used to remove dense, fresh sawdust from the bottom end of the saw.

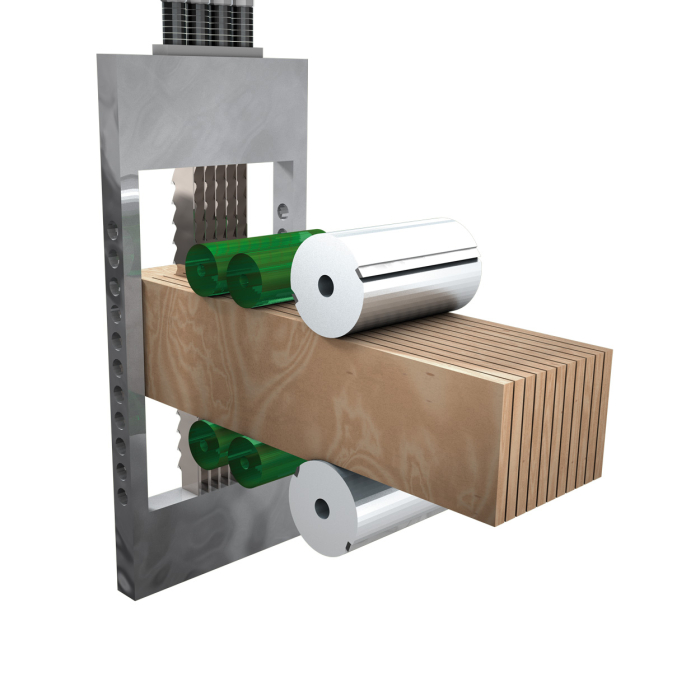

Double planer
The newly developed double planer boasts optimal accessibility, with all components being mounted on one side; it also features a compact design, and easy tool change.
User benefits: Precision joining edge for gluing, no transport marks on the face of the lamellas, perfectly parallel lamellas.

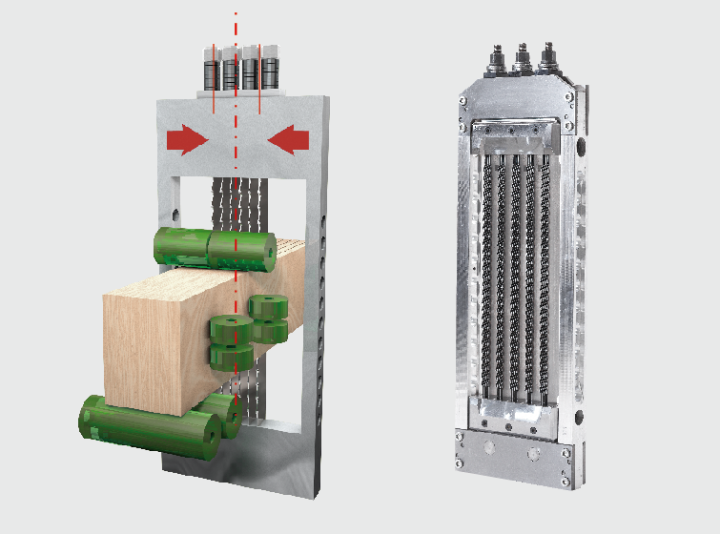

Centric saw frame tensioning
Centric saw frame tensioning
The saw frame’s symmetrical design guarantees uniform saw blade tension throughout. This improves the cutting accuracy and increases the service life of the thin-cutting saw blades. The individual saws can be replaced quickly and ergonomically.
Highlights

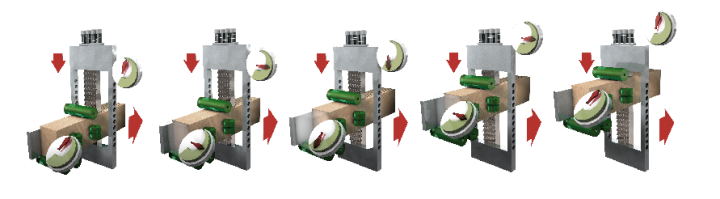

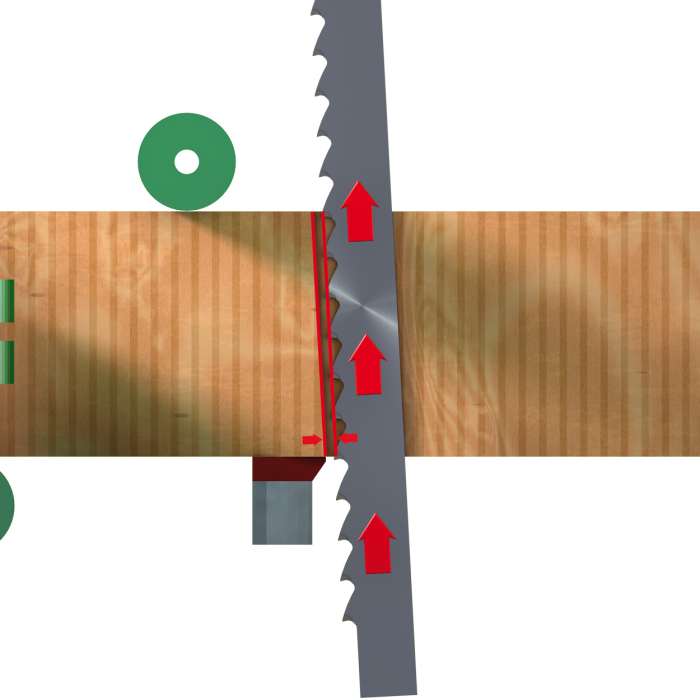

Consistent clean cutting
The feed and stroke movements interact perfectly with the saw overhang to enable consistent clean cutting as the saws move upwards. The result is optimal cutting performance in combination with the WINTERSTEIGER air jet system.
266 mm cutting height
WINTERSTEIGER’s consistent focus on customer requirements is also underlined by the standardized cutting height of 266 mm. This means that, even in the basic version, lamellas for the production of extra-wide planks, door elements, and panels can be cut with familiar WINTERSTEIGER precision and a kerf from 1.1 mm.

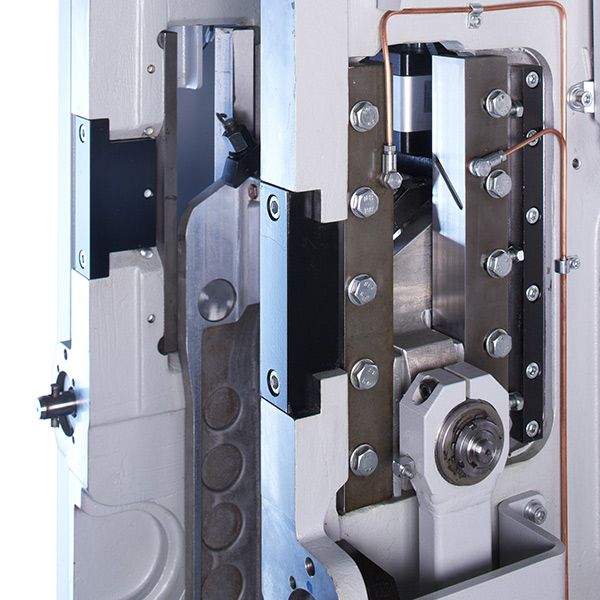

Advanced frame guide system
The tried-and-tested frame guide principle with free-sliding guides has now been perfected with the redesign of the key component that transfers the stroke movement. The frame guide has been structurally reinforced and redesigned to be more maintenance-friendly, thereby increasing the availability of the machine while at the same time meeting more exacting cutting height requirements.

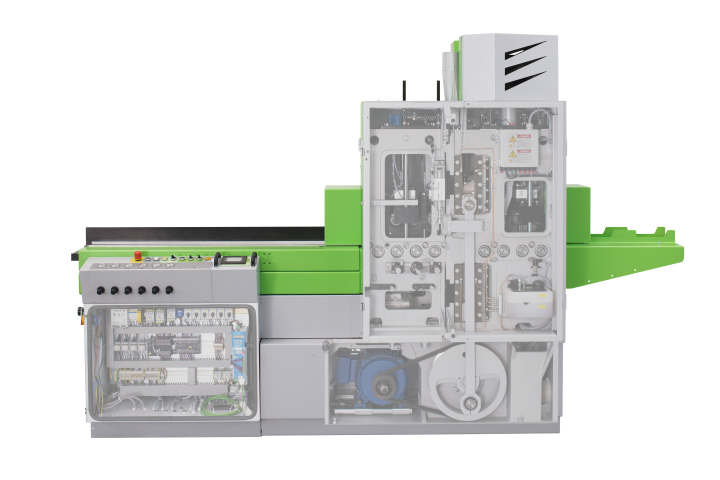

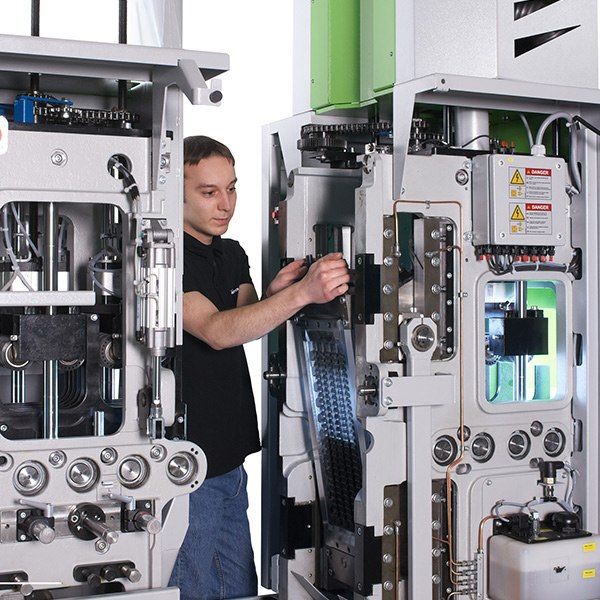

Optimum accessibility
The innovative design ensures easy access to all machine components. For example, the saw frame can be replaced ergonomically while the machine is open. What’s more, machine availability has also been increased as minimal time is required for adjustment work, setup times, and maintenance.
Tolerance-free linear guides also ensure precise travel. The sturdy locking mechanism guarantees the machine remains stable at all times.

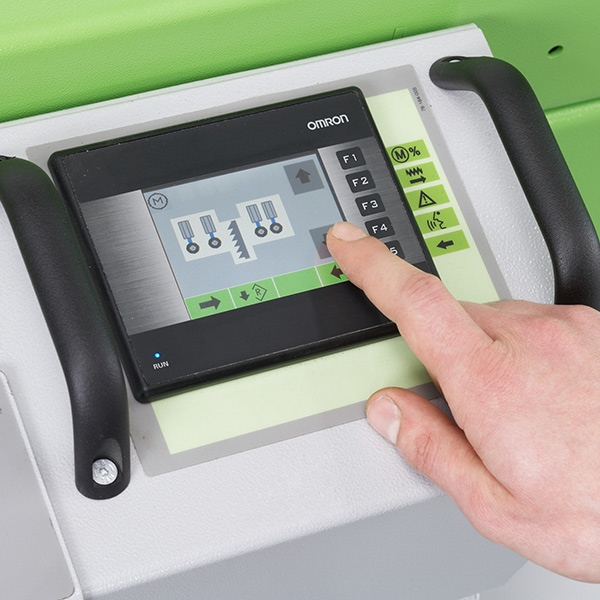

Easy to operate
The compact and easy-to-read touchscreen display allows the operator to set values, switch menus, and view maintenance instructions and data.

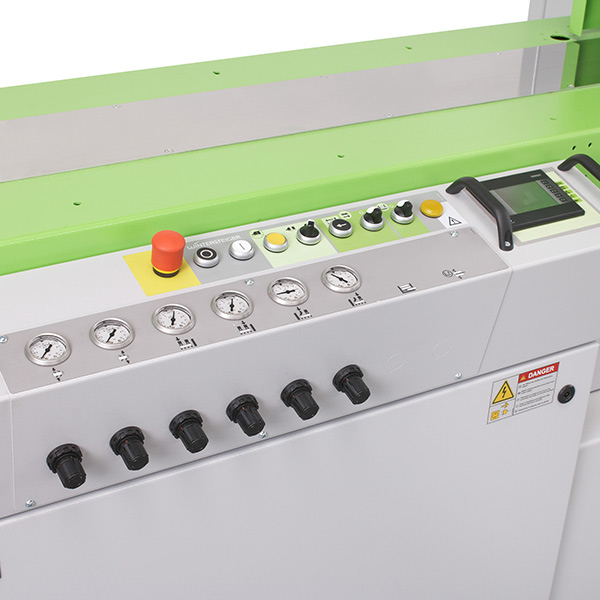

Central control cockpit
All control elements are operated via the centrally positioned touchscreen display, control switches, and pressure governor. This means that mechanical adjustments are no longer required. The control cockpit is vibration-decoupled. This protects all pneumatic and electronic components from vibrations. This is beneficial as it increases the service life and availability of all control elements.
Individual block guide system
Demanding requirements require tailored solutions.
That’s why WINTERSTEIGER offers individually tailored block guide systems:

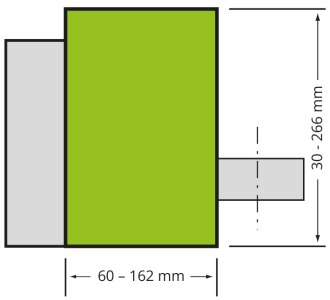

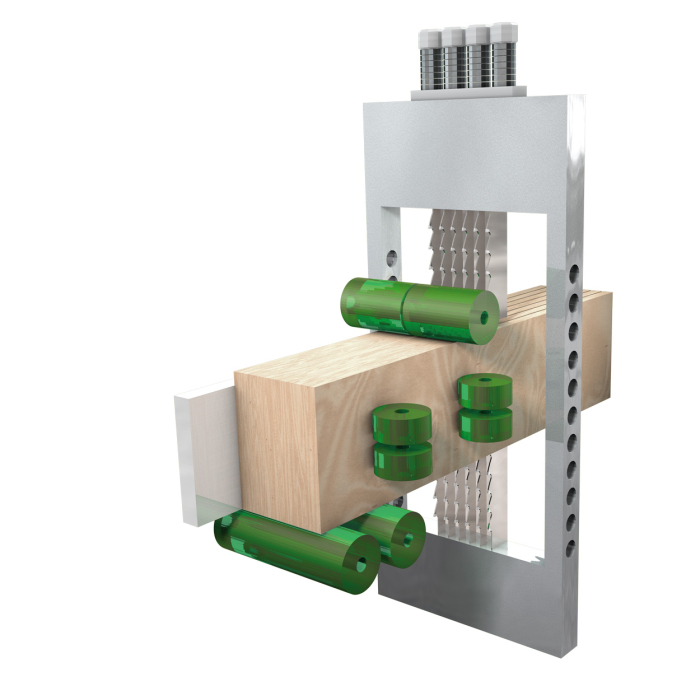

Side and center guide
In the side guide position, the wooden block is guided along the gage positioned at the side by pneumatically controlled pressure rollers.
Block width: 0–162 mm
Block height: 30–266 mm

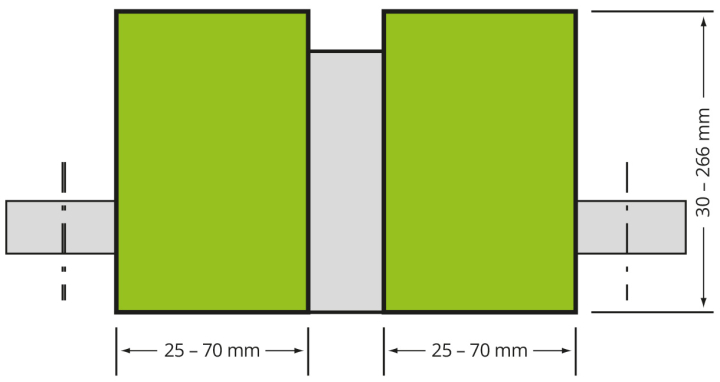

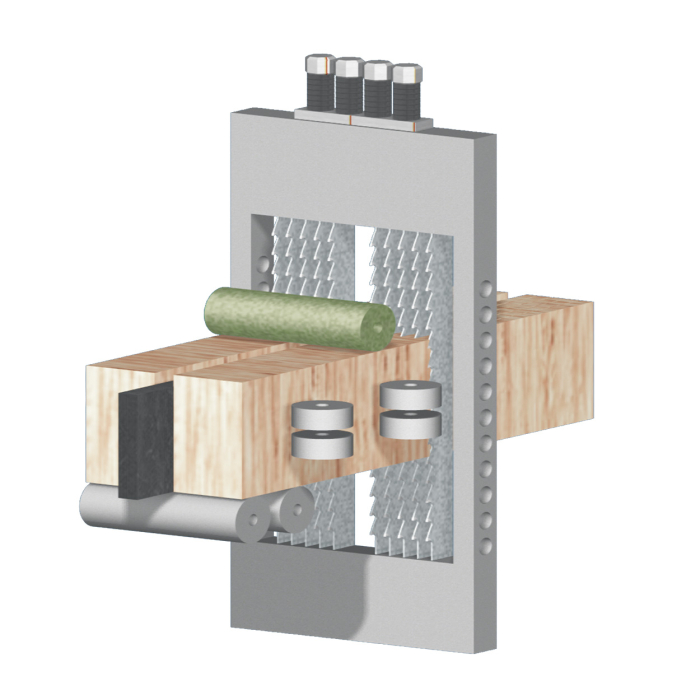

Center guide
In the center guide position, two wooden blocks are guided along the left and right sides of the centrally positioned gage by pneumatically controlled pressure rollers.
Block width: 2 x 25–70 mm
Block height: 30–266 mm

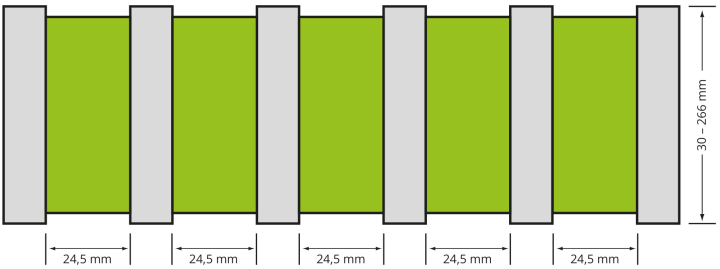

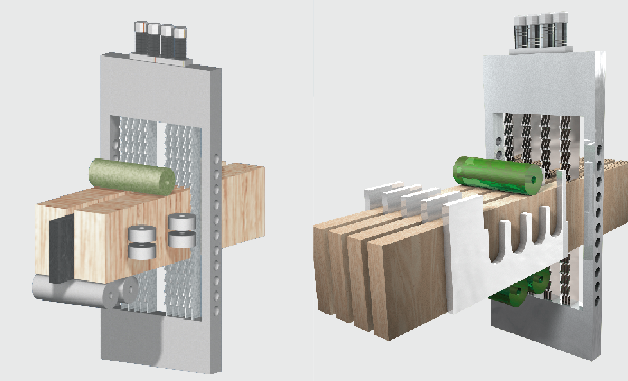

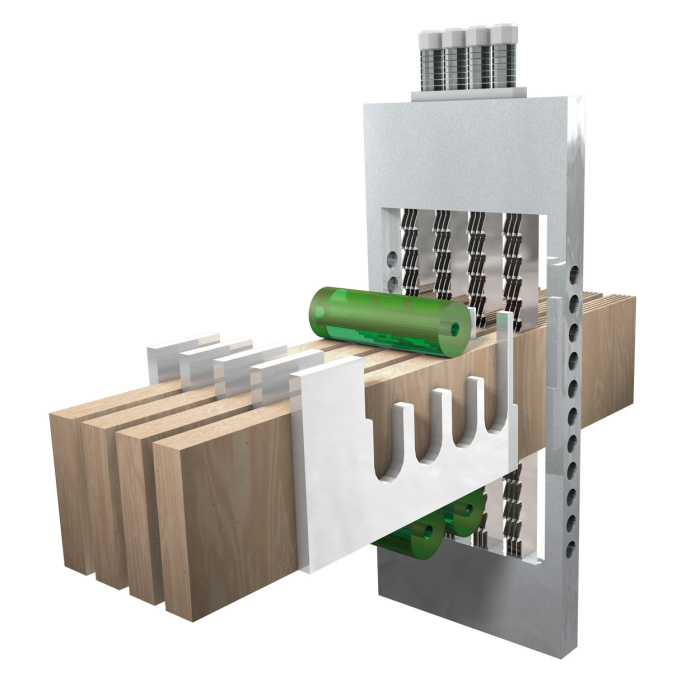

Channel system
The easy-to-upgrade system processes multiple blocks at the same time.
Channel design: According to customer requirements
Number of channels: 2–5 channels
Block height: 30–266 mm
Block jams are avoided thanks to the conical block inlet (even pre-planed material can be problematic.)
Specially machined guide rails ensure that the blocks are precisely aligned immediately before they are cut

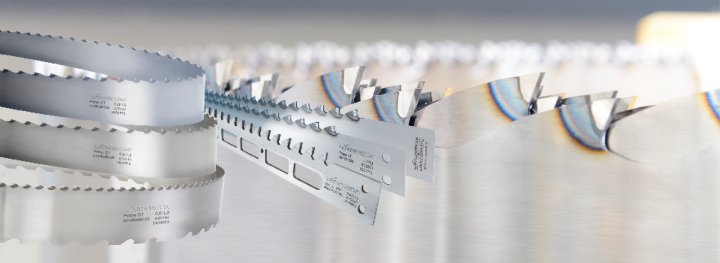

自主开发生产的锯片。
要求严苛的客户需要定制型刀具。
WINTERSTEIGER 根据客户要求提供优质材料、合适的锯条尺寸和锯齿几何形状。
WINTERSTEIGER 的薄切割框锯和带锯令人折服！
- 最优解决方案
- 经济效益极高
- 可信赖的合作伙伴：
WINTERSTEIGER 售后服务。
交货的完成即意味着服务的开始。
WINTERSTEIGER 售后服务。
交货的完成即意味着服务的开始。
您的 WINTERSTEIGER 客户顾问将很乐意为您提供量身定制的解决方案！
